IP20 LED strips

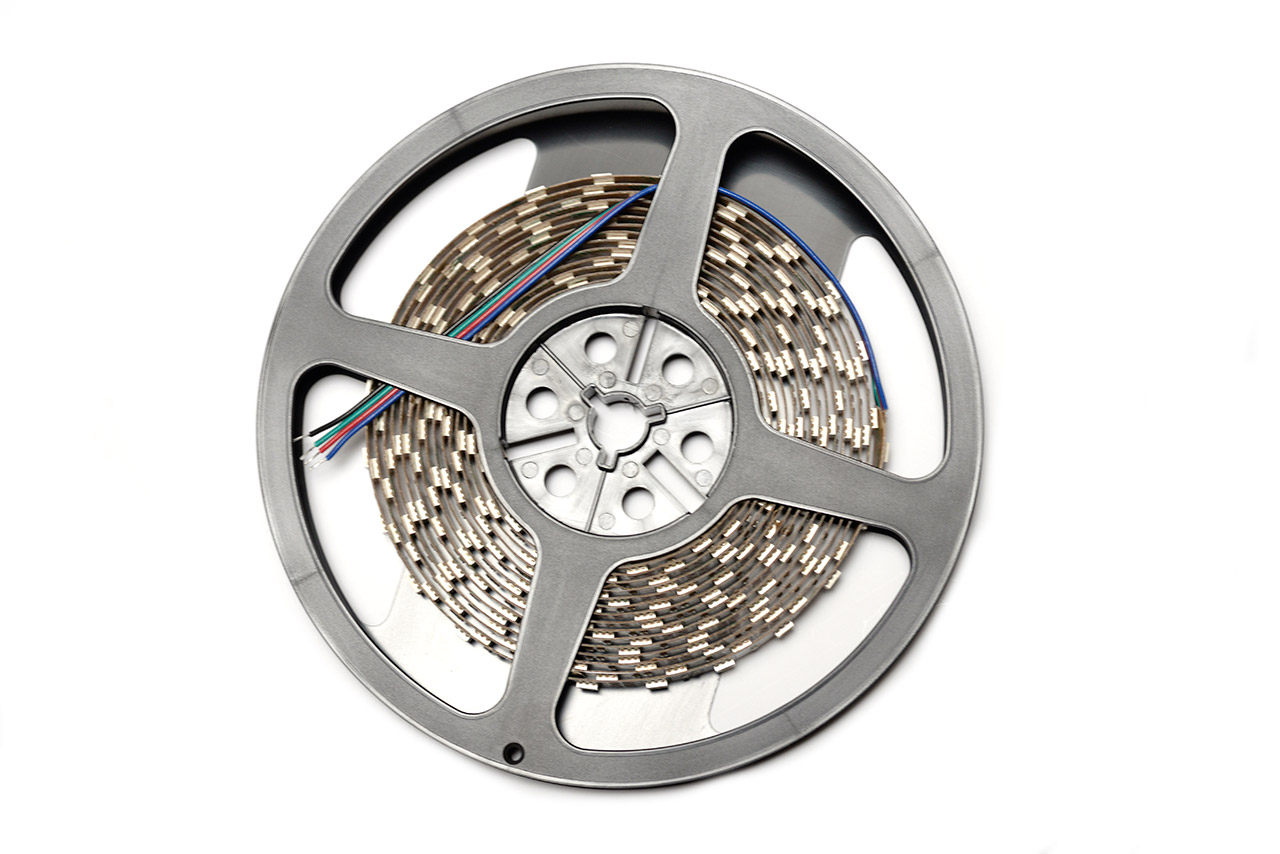

LED strip light

LEDIFY LED strips are extremely durable, reliable and high quality. Our LED strips are suitable for all indoor and outdoor spaces, public spaces, ships, cars and even work with solar panels. LEDIFY LED strips are trusted by many professionals.

The versatile and durable LEDIFY LED strip is fit in really tight spaces and illuminates surfaces evenly.

Thanks to the low operating temperature and high lumen output, LED strips provides a smooth and even light for kitchen worktops and other similar spaces.

LED strip can also be used in outdoors such as in terraces, stairs or railings. LED strips can also be installed inside the aluminum profile. We offer different kinds of profiles and they all come with a matte diffuser. The strip does not heat up, so it can safely be installed in a small space.

Installing the LED strip is easy with the strong 3M tape on the back side of the strip. LED strip can also be cut with scissors to the proper length from the cutting marks.

LEDIFY LED strip is available in two different color temperatures: 3000K and 4000K.

The IP20 LED strip is suitable for use in dry environments. Popular applications are cabinets, glass showcases and in the kitchen worktops inside the aluminum profile.

Features

  • Strip doesn’t heat up, so it can also be installed in small spaces
  • Strong 3M tape
  • 5m strip in sales package
  • Long life
  • 2 year warranty

Note! The packaging does not contain the driver.

The tape can be cut with regular scissors from the marks spaced at 5cm intervals.

The tape can be extended with extension connectors, however we recommend to solder the electrical wires to the contact surfaces of the strip.

The LED strip is sold in 5m packs.

Our LED strips work with12VDC and they are dimmable.

Drivers and dimmers are sold separately.

IP20 LED strips are available in powers: 4.8W, 7.2W, 9.6W and 14.4W / m and in colors of 3000K and 4000K.

RGB LED strip is also available with IP20 protection.

Please note that the max. lenght of LED strip is 10m.

LED strip power and driver

  • 4.8W/m, requires a minimum of 24W driver
  • 7.2W/m, requires a minimum of 36W driver
  • 9.6W/m, requires a minimum of 50W driver
  • 14.4W/m, requires a minimum of 75W driver

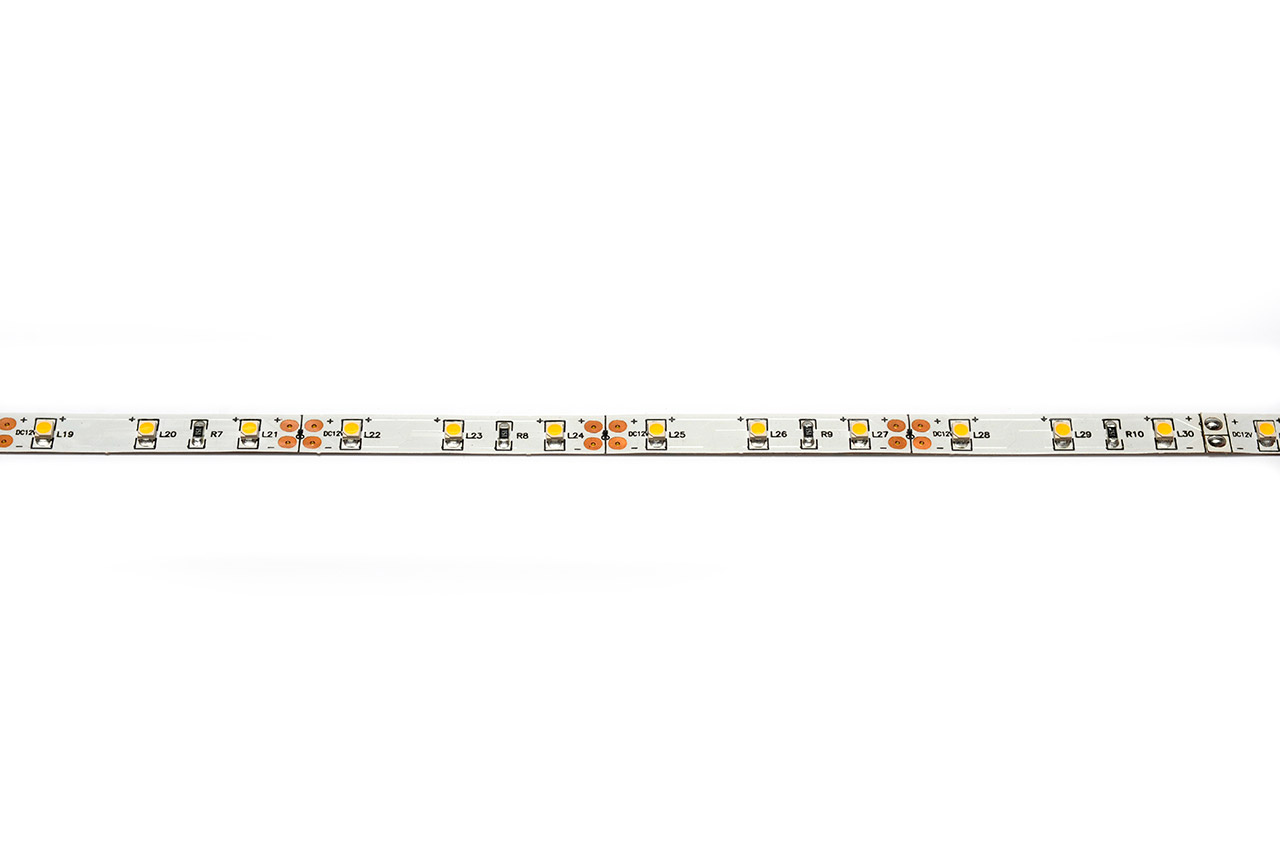

Power4,8W/m
Voltage12VDC
Luminous flux400 lm/m
Protection ratingIP20
Operating temperature-25°C - +60°C
Color temperature3000K / 4000K
Beam angle120°
Dimensions (mm)5000 x 8 x 2,5
Power7,2W/m
Voltage12VDC
Luminous flux600 lm/m
Protection ratingIP20
Operating temperature-25°C - +60°C
Color temperature3000K / 4000K
Beam angle120°
Dimensions (mm)5000 x 8 x 2,5

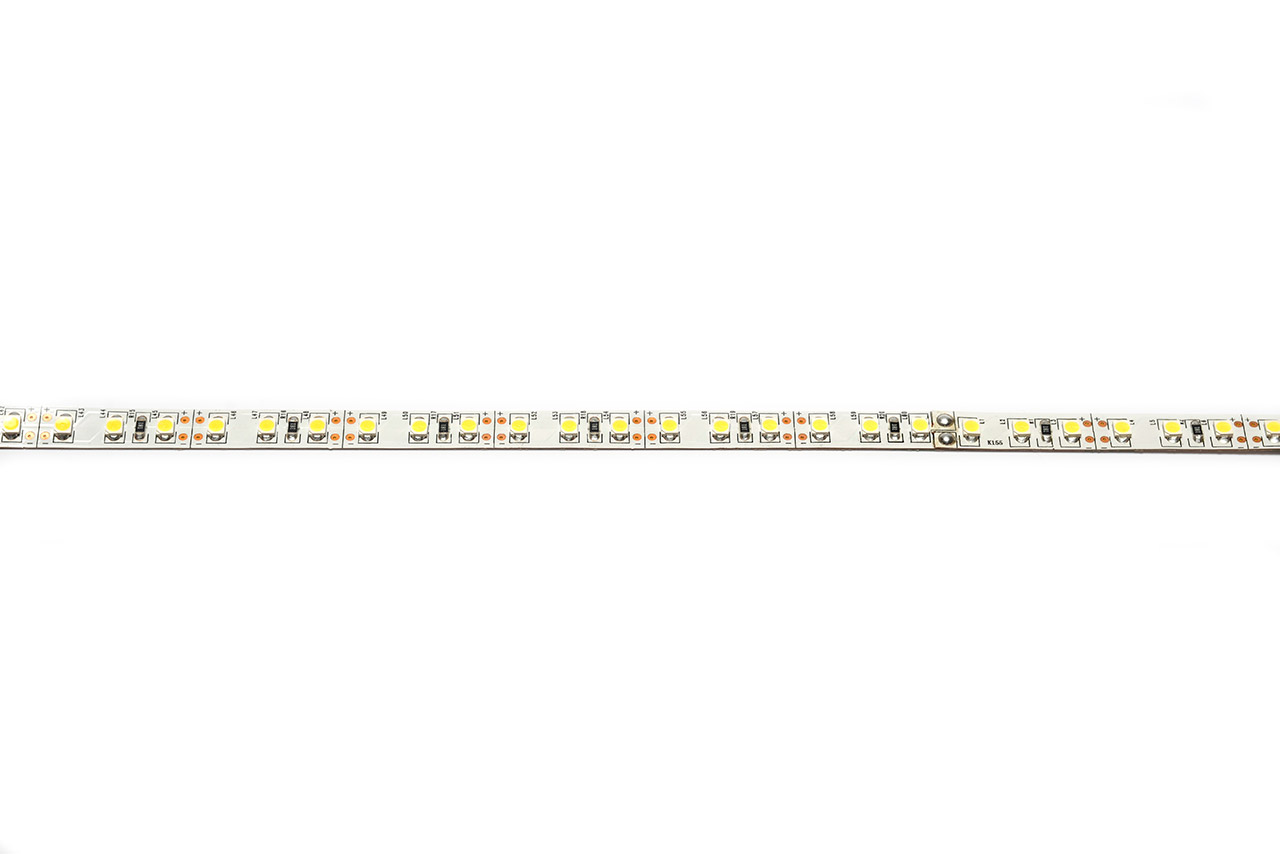

Power9,6W/m
Voltage12VDC
Luminous flux800 lm/m
Protection ratingIP20
Operating temperature-25°C - +60°C
Color temperature3000K / 4000K
Beam angle120°
Dimensions (mm)5000 x 8 x 2,5

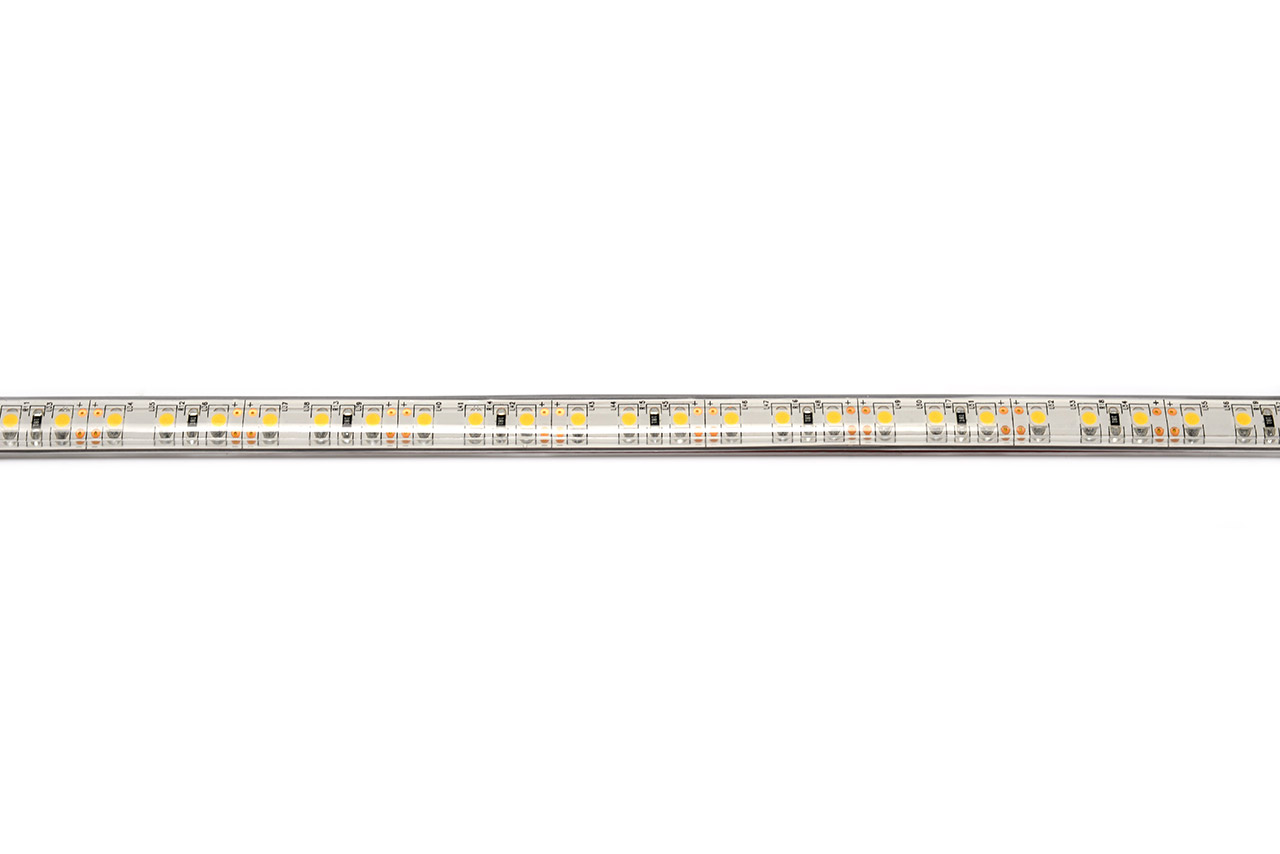

Power14,4W/m
Voltage12VDC
Luminous flux1100 lm/m
Protection ratingIP20
Operating temperature-25°C - +60°C
Color temperature3000K / 4000K
Beam angle120°
Dimensions (mm)5000 x 8 x 2,5
Power14,4W/m
Voltage12VDC
Luminous flux1100 lm/m
Protection ratingIP20
Operating temperature-25°C - +60°C
Color temperature3000K / 4000K
Beam angle120°
Dimensions (mm)5000 x 10 x 2,5
ProductArt.nroElectric No.GTIN
4,8W/m / 12V
4,8W/m 3000K IP2033204841284886410041284880
4,8W/m 4000K IP2034204841284896410041284897
4,8W/m 3000K IP20 30m342048R
4,8W/m 4000K IP20 30m342048R
7,2W/m / 12V
7,2W/m 3000K IP2033207241284926410041284927
7,2W/m 4000K IP2034207241284936410041284934
9,6W/m / 12V
9,6W/m 3000K IP20332096
9,6W/m 4000K IP2034209641285026430062719635
14,4W/m / 12V
14,4W/m 3000K IP2033201441284966410041284965
14,4W/m 4000K IP2034201441284976410041284972
14,4W/m RGB / 12V
RGB 14,4W/m IP203920146430062712179
RGB-controller + Remote2418646430062718645
